pGBT9酵母双杂交质粒

基本信息

质粒属性

■ 质粒简介

         pGBT9 generates a hybrid protein that contains the sequences for the GAL4 DNA-binding domain (DNA-BD; a.a. 1–147). For the construction of a hybrid protein, the gene encoding the protein of interest is ligated into the MCS in the correct orientation and in the correct reading frame such that a fusion protein is generated. The fusion protein is expressed in yeast host cells from the constitutive ADH1 promoter; transcription is terminated at the ADH1 transcription termination signal. The hybrid protein is targeted to the yeast nucleus by nuclear localization sequences that are an intrinsic part of the GAL4 DNA-BD . pGBT9 is a shuttle vector that replicates autonomously in both E. coli and S. cerevisiae. It carries the bla gene (for ampicillin resistance in E. coli) and the TRP1 nutritional marker that allow yeast auxotrophs carrying pGBT9 to grow on limiting synthetic medium lacking Trp.

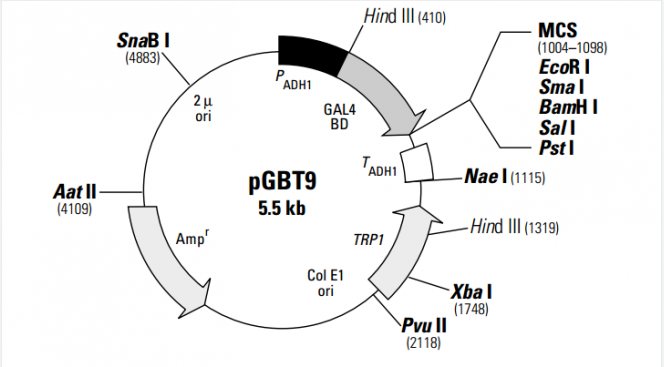

■ 质粒图谱

质粒序列

质粒序列请下载：

pGBT9质粒全序列.txt
