pGBKT7 酵母双杂交质粒

基本信息

质粒属性

质粒简介

The pGBKT7 vector expresses proteins fused to amino acids 1–147 of the GAL4 DNA binding domain (DNA-BD). In yeast, fusion proteins are expressed at high levels from the constitutive ADH1 promoter (PADH1); transcription is terminated by the T7 and ADH1 transcription termination signals (TT7 & ADH1). pGBKT7 also contains the T7 promoter, a c-Myc epitope tag, and a MCS. pGBKT7 replicates autonomously in both E. coli and S. cerevisiae from the pUC and 2 μ ori, respectively. The vector carries the Kanr for selection in E. coli and the TRP1 nutritional marker for selection in yeast. Yeast strains containing pGBKT7 exhibit a higher transformation efficiency than strains carrying other DNA-BD domain vectors (1).

pGBKT7 is the DNA-BD Vector included with Clontech's Matchmaker™ Systems. The MCS of pGBKT7 contains unique restriction sites in frame with the 3' end of the GAL4 DNA-BD for constructing fusion proteins with a bait protein. The bait protein is also expressed as a fusion to a c-Myc epitope tag. c-Myc tagged proteins can be identified with antibodies raised to this common epitope, eliminating the need to generate specific antibodies to new proteins. The T7 promoter is used for in vitro transcription and translation of the epitope tagged fusion protein. Note that the DNA-BD is not expressed during the in vitro transcription and translation reactions.

The MCS in pGBKT7 is compatible with those in pMyc-CMV and pHA-CMV, Clontech's epitope tagged mammalian expression vector set (Cat. No. 631604). As a result, the target gene can be shuttled into these vectors in order to confirm protein interactions in vivo.

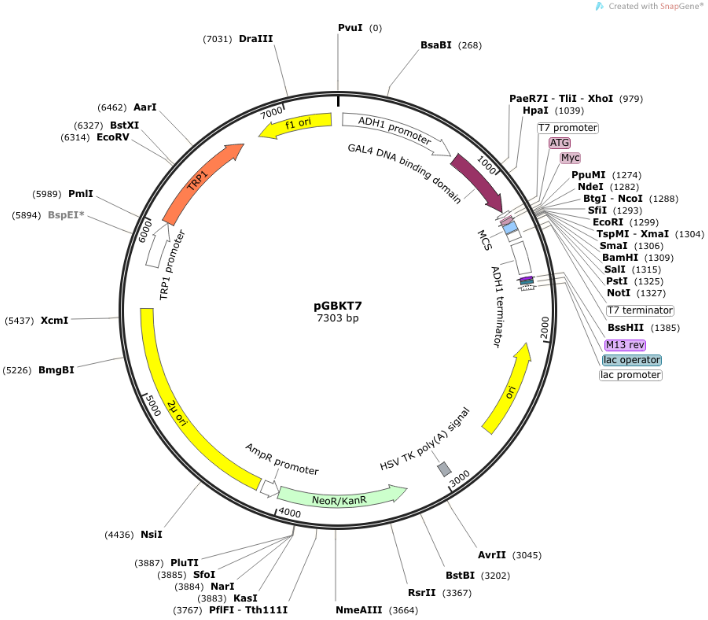

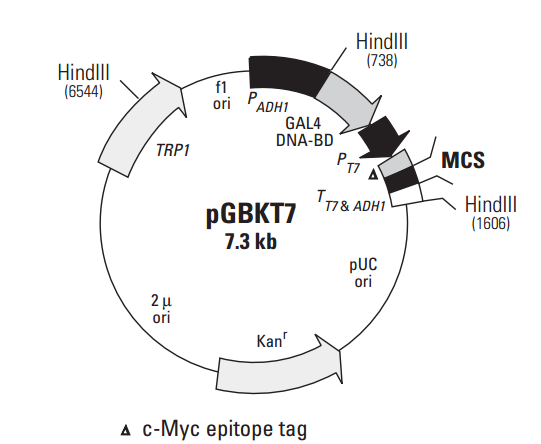

质粒图谱

质粒序列

质粒序列请下载：pGBKT7.txt
